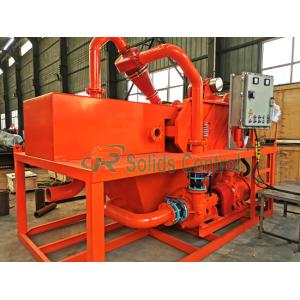

Desander Plant For Bored Pile And TBM Tunnel Boring Machine
Product Overview
Bored Pile & TBM Desanding Plant is design for bored pile on construction with economy option and very compact design for small footprint. The desanding plant is design for flexible working and installation to suit bored pile, TBM or HDD mud recycling system.
The multi-layout mud-water separation plant, self-developed by TR Solids Control, can be applicable to the slurry and sewage treatment by constructions and pollutions. According to the processing requirements, multiple-stage separation process is adapted to separate the solid matters to recycle the water. Meanwhile, the solid matters can be delivered to the landfill or reused after dewatering.
The multi-stage treatment method utilizes the optimal work efficiency of each system for the treatment of respective particle size range of solid particles, effectively reducing the unit mud treatment cost and improving the treatment efficiency.
Desig Characterstics of TR Desanding Plant
Technical Specifications of TR Desanding Plant
| Model | TRZX-50/25 | TRZX-100/50 | TRZX-200/50 |
| Fluid Capacity | ≤50m³/h | ≤100m³/h | ≤200m³/h |
| Sludge Treatment Capacity | ≤26T/h | ≤50m³/h | ≤50m³/h |
| Separation Point | 25μm | 50μm | 50μm |
| Shale Shaker | TRZS753 | TRZS753 | TRZS705 |
| Screen Area | Upper:700×1250 Bottom:750×900×2 | Upper:700×1250 Bottom:750×900×2 | Upper:750×900×2 Bottom:700×1250×3 |
| Vibration Motor | 1.0kw×2 | 1.0kw×2 | 1.5KW×2 |
| Matching Pump | TRSB4×3-12(15KW) | TRSB5×4-13(30KW) | TRSB6×5-13J(45KW) |
| Matching Hydrocyclone | DN100×4 | DN250×1 | DN250×2 |
| Tank Dimension | 2.1x1.5x2.6m | 3.05x2.0x1.2m | 3.6x2.1x1.2m |
| Dimension | 3.12x2.2x2.38m | 3.7x2.2x2.54m |
TR Bored Pile Desanding Plant has demonstrated its high-performance capabilities at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc. If any new inquiry of mud system, welcome to conatct with us. Thanks!
Understand what customers need and provide what customers want, TR Solids Control provides one-stop solution for the world’s solid control & foundation construction users. While providing customized quality products, our services will leave you with no worries. We boast a group of experienced experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of solid control and construction equipment.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
